Winches up to 1 t

Back to overview



> Electric capstan winch with a drilling machine

It is normally used for short cable pulls which can no longer be executed manually. The two capstan wheels provide different forces and speeds.
The winch can be used for steel and fibre ropes. Cords can also be pulled directly. A drilling machine is used for the drive. The winch is very handy and can be used practically everywhere.

PDF-File | page up
  • Dimensions (L x W x H):
    58 x 28 x 29 cm
  • Weight: approx. 18 kg
  • Pulling force: 500 / 250 kp
  • Cable speed: 4 / 8 m/min.
  • Engine: Metabo 710 W drilling machine

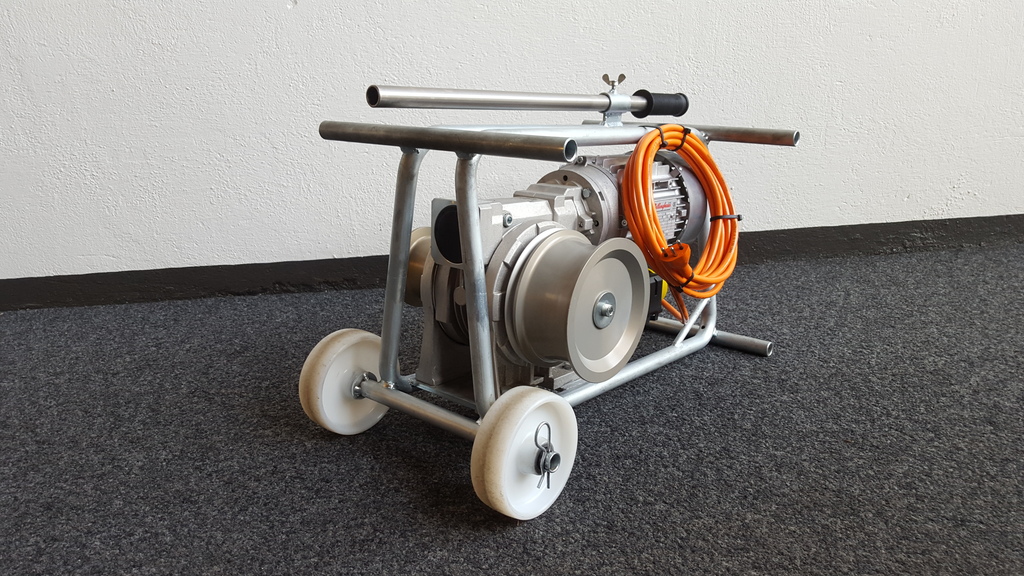

> Electric capstan winch SWE 500

It is normally used for short cable pulls which can no longer be executed manually. The two capstan wheels provide different forces and speeds. Use the optional back pull device to wind the pull rope directly on the reel.
The winch can be used for steel and fibre ropes. Cords can also be pulled  directly. An electric motor is used for the drive. The winch is very handy and can be used practically everywhere.
Standard version Increased pulling speed
  • Pulling force: 800/400 kp
  • Pulling force: 500/250 kp
  • Cable speed: 4/8 m/min.
  • Cable speed: 8/16 m/min.
  • Engine: 5.5 A; 0.75 kW
  • Engine: 7.5 A; 1.1 kW

PDF-File | page up
  • Dimensions (L x W x H):
    54 x 38 x 62 cm
  • Weight: approx. 38 kg

> Capstan winch with fuel engine SWB 500

This capstan winch is normally used for shorter cable pulls which can no longer be executed manually. The two capstan wheels provide different forces and speeds. The winch can be used for steel and fibre ropes. Cords can also be pulled directly. A petrol engine is used for the drive. The winch is very handy and can be used practically everywhere.
Standard version Increased pulling
force
Increased pulling
speed
  • Pulling force:
    300/160 kp
  • Pulling force:
    430/230 kp
  • Pulling force:
    160/90 kp
  • Cable speed:
    14/25 m/min.
  • Cable speed:
    10/18 m/min.
  • Cable speed:
    26/48 m/min.
  • Engine: 1.8 kW
  • Engine: 1.8 kW
  • Engine: 1.8 kW
  • Gear: 1:45
  • Gear: 1:64
  • Gear: 1:24

PDF-File | page up
  • Dimensions (L x W x H):
    57 x 37 x 46 cm
  • Weight: approx. 26 kg

> Auxiliary winch HSW 300

This machine is specifically suited for pre-roping (pulling-in the pull rope), calibration and for pulling ground cables up to 5 kN (max. 8 kN over the capstan).
The hydraulic drive always ensures that the full output is available, i.e. that the machine can either pull using low speed and high force or high speed and low pulling force.

  • Hydraulic, stepless drive via a variable displacement pump
  • Installed overpressure valve with a manometer
  • Engine with an automatic stop and start function in case of low oil
  • Centrifugal clutch for decoupling the hydraulic pump from the drive engine at low revs
  • Removable wheels for easy transport
  • Reel with a high capacity and with free-wheeling ability

PDF-File | page up
  • Pulling force: 5 kN (max. 8 kN over the capstan)
  • Dimensions (L x W x H):
    107 x 74 x 73 cm
  • Weight without rope: 160 kg

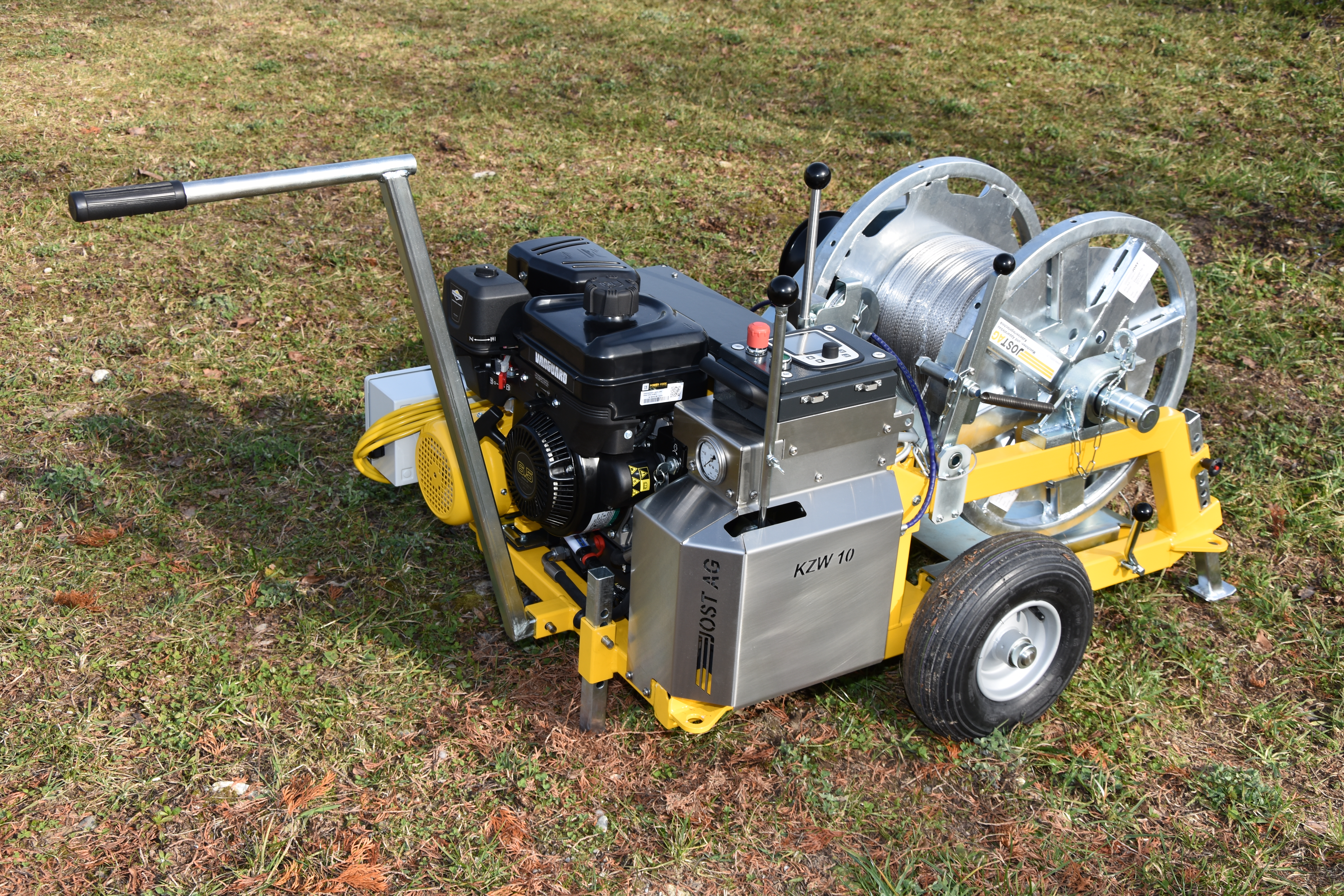

> Cable Pulling Winch KZW 10

This winch is ideal for pre-roping (pulling-in the pull rope),

Calibrating, or pulling in ground or fiberglass cables at up to 12 kN.

The hydraulic drive always ensures maximum power, whether high force at low speed, or low force at high speed. The direct-drive capstan enables cable slackening or Manual pulling up to 16 kN (1.6 t). The quick-release wheels are ideal for easy transport.Fast reel change by means of a lifting plate enhances the flexibility of working with this machine. Free wheeling reel to pull out without starting the engine.


Standard version

  • Petrol engine Briggs & Stratton Vanguard 4.8 kW (6.5 HP) with electrical starters
  • Hydraulic stepless drive
  • Built-in relief valve with manometer
  • Safety cutout in case of oil failure
  • Centrifugal clutch cuts off hydraulic oil pump drive at low speeds
  • Unlockable reel with large capacity
  • Quick-release wheels for easy transport
  • Hand push rod
  • Rope guide
  • Drum change supporting mechanism
  • Interface for charger with charging status display
  • Battery charger
  • Lifting belt


Further Options

  • Electric motor 3 kW, 400 V, additional
  • Side-mounted capstan with 16 kN (1.6 to) pulling force
  • Diverse reel sizes
  • Measurement control PMC14S direct pull, indication of force, speed, length and Maximum cut-off contact
  • Measurement control PMC14S direct pull indication of force, speed, length, Maximum cut-off contact and registration USB2.0A
  • Remote control with cable

PDF-File | page up
  • Pulling force: Direct (Ø200): 12 kN (1.2 To), (Ø400): 6 kN (0.6 To), Via capstan: 16 kN (1.6 To)
  • Speed: Direct (Ø200): 35 m/min (max.), (Ø400): 70 m/min (max.), Via capstan: 27 m/min (max.)
  • Dimensions: Length: 127 cm, Width: 88 cm, Height: 80 cm
  • Weight without rope: Standard: 210 kg, With el. Motor 270 kg,
  • Rope Capacity, standard reel No. 5, Steel rope: Ø6 mm x 1200 m (144kg), Fibre rope: Ø5 mm x 1800 m (23kg)
