Cable rolls
Whether for catenary, overhead line cable construction or a different application, we can always provide you with the fitting rope roll.

> Return to Accessories overview



> Cable roll F+F

This cable roll is especially suitable for catenary assembly and maintenance work.

  • Lightweight construction, corrosion-proof
  • Plastic roll with good rope guidance
  • Fixed gambrel stick (does not turn)
  • Permanently greased roller bearings

PDF-File | page up
  • Roll diameter: 150 mm
  • Passage: 50 mm
  • Dimensions (H x W):
    27 x 12 cm
  • Weight: 2.5 kg

> Cable roll Star

This cable roll is especially suitable for catenary assembly and maintenance work.

  • Lightweight construction, corrosion-proof
  • Plastic roll with good rope guidance
  • Aluminium side parts
  • Rotatable by 360°
  • Permanently greased roller bearings

page up
  • Carrying force: 500 kg
  • Roll diameter: 150 mm
  • Passage: 50 mm
  • Weight: approx. 3 kg
    incl. isolator holder

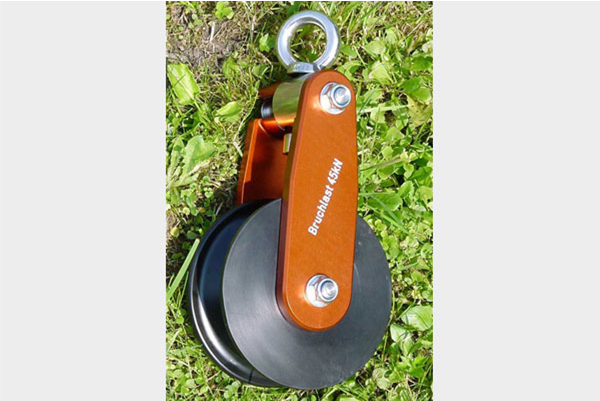

> UHU cable roll

This rope roll is particularly suitable as a mast roll for overhead line cable construction.

  • Lightweight construction, corrosion-proof
  • Plastic roll with good rope guidance
  • Aluminium side parts
  • Rotatable by 360°
  • Inherently safe under load pressure, easy to open
  • Permanently greased roller bearings

page up
  • Carrying force: 1000 kg
  • Breaking force: approx. 4500 kg
  • Roll diameter: 150 mm
  • Passage: 50 mm
  • Dimensions (H x W):
    30 x 12 cm
  • Weight: 2.7 kg

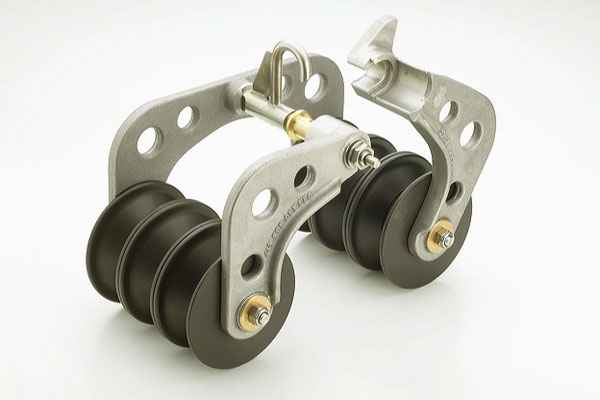

> Six Pack cable roll

This cable roll is especially suitable for catenary assembly and maintenance work. Two or three conductors can be pulled simultaneously.

  • Lightweight construction, corrosion-proof
  • Plastic (protecting the cable) or aluminium roll (earthing) with good cable guidance
  • Aluminium side parts
  • Special slide for pulling 2 or more conductors with one pull rcable
  • Cable roll opens and closes easily

page up
  • Roll diameter: 150 mm
